Yachtbeach Foil Dock Single 2.05 — Overview
The Yachtbeach Foil Dock Single 2.05 is an inflatable docking and boarding platform built around two integrated ramps — the easiest way to climb back on board an e-foil, jet board, SUP or eFoil between rides. The 2.05 × 2.05 m square platform combines a stable EVA-coated deck with two 8 cm ramp edges, 6 handles, 6 D-rings, 4 ballast bags and standard Yachtbeach connection hardware so it links to other Yachtbeach platforms and Luxury Pools.
No metal hardware means no cut risk and no rust. Drop-stitch construction holds the platform stiff under load. Packed weight (incl. bag): just 18.4 kg.
Two 8 cm Boarding Ramps

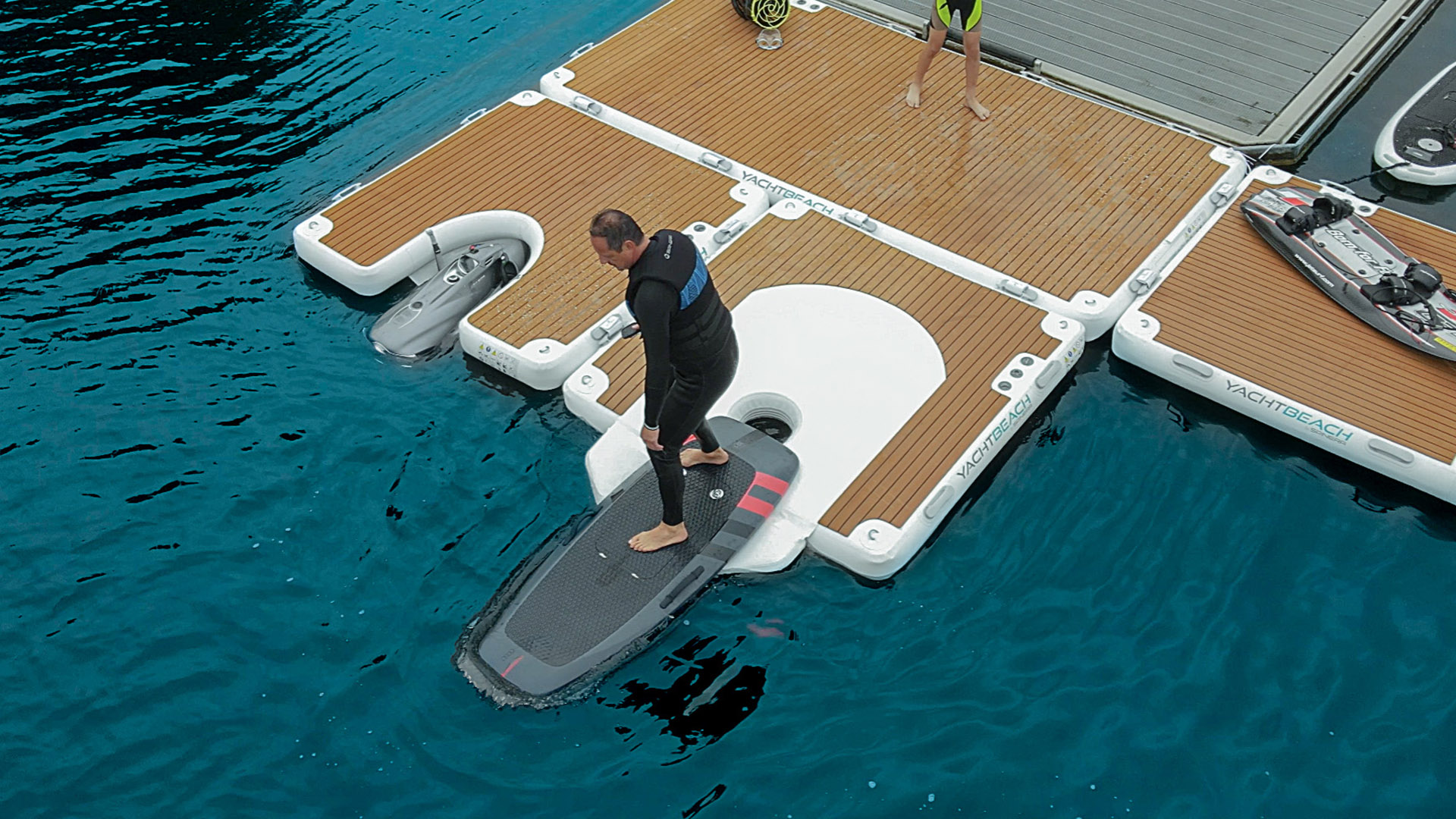

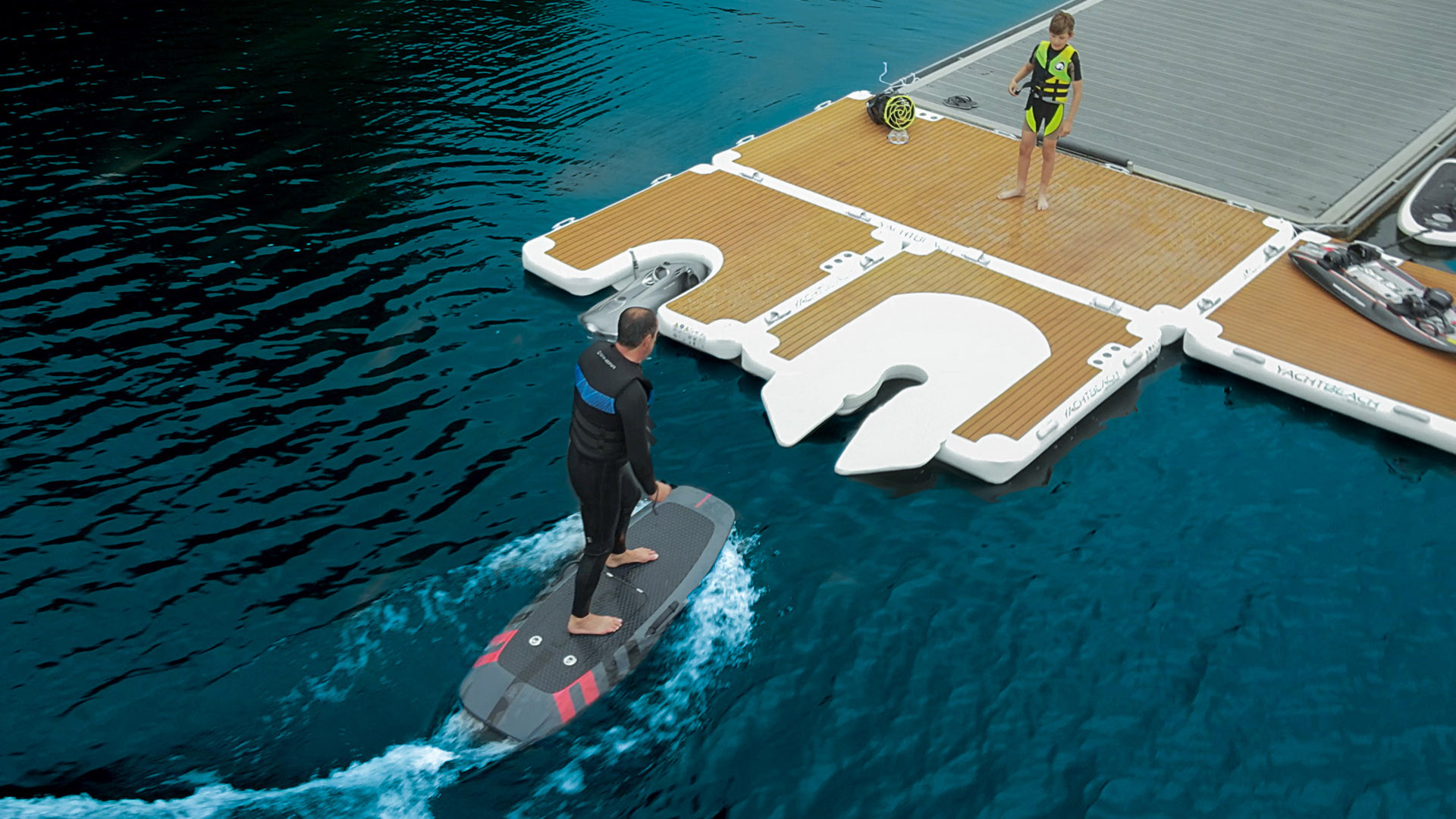

Two low-angle ramps make climbing back on board after a fall, a session or a swim effortless — ideal for tired e-foil and jet-board riders returning to deck.
Modular Yachtbeach Connection System

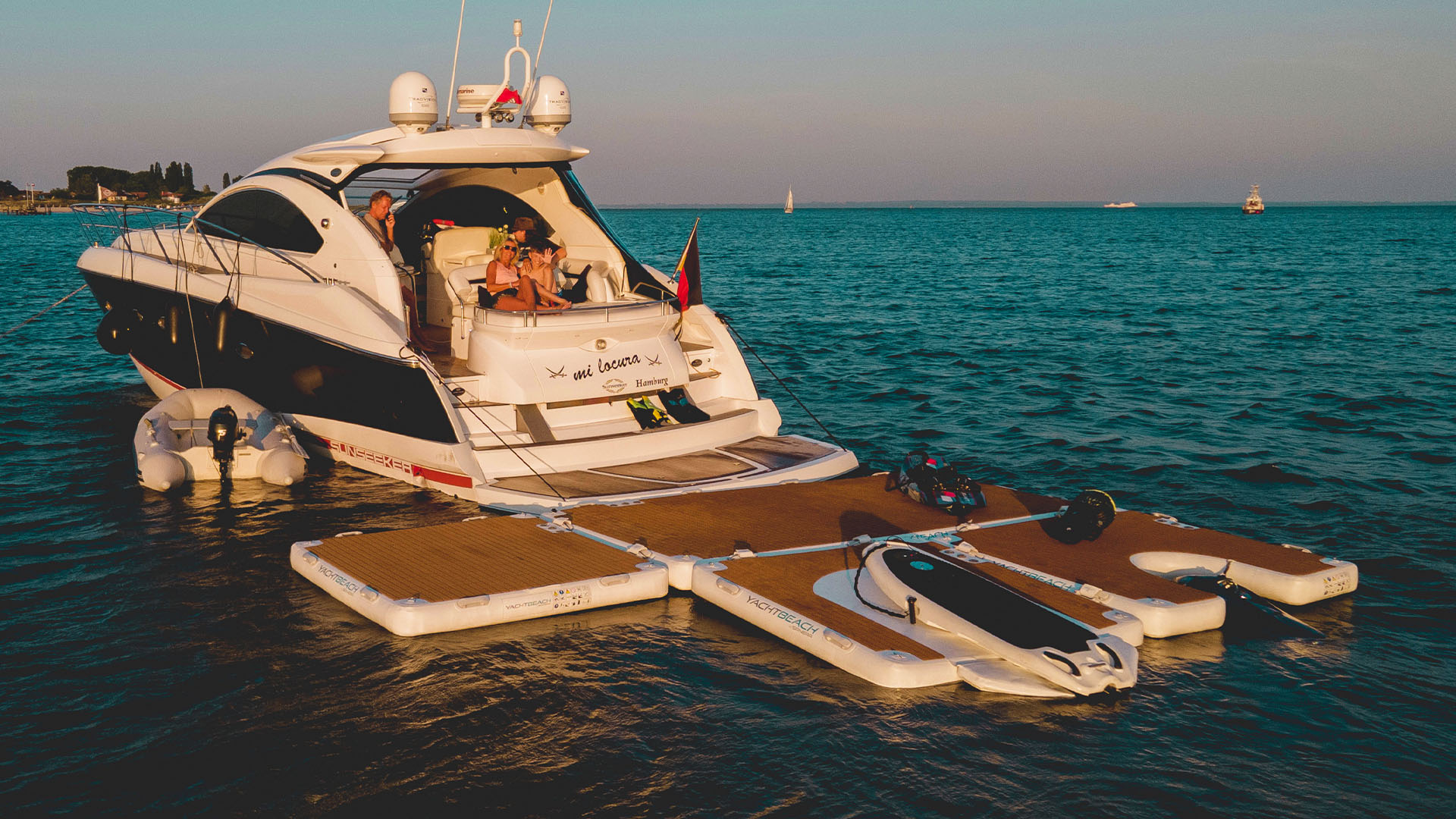

6 handles + 6 D-rings (4 top + 2 bottom) connect via the standard Yachtbeach hardware to other Yachtbeach platforms (HEX Sport / Party / Relax Zones, Premium Teak platforms) and Luxury Pools. Build a multi-module floating layout.
No Metal, Anti-Slip EVA Surface
No metal parts means no rust and no cut risk for swimmers. The EVA-coated anti-slip deck stays comfortable under bare feet even in full sun.
4 Ballast Bags + 4 HP Valves
4 ballast bags keep the platform anchored against wind and waves. 4 high-pressure inflation valves fill the chamber quickly; the pressure-relief valve prevents overinflation in the sun.
Packs Down for Storage
Deflates and packs into the included carrying bag at 80 × 40 × 30 cm. A repair kit ships with the platform (glue sold separately).
Foil Dock Details & Specifications
Key Foil Dock specs at a glance.
| Inflated Size | 2.05 × 2.05 m (6.7′ × 6.7′) |
|---|---|
| Packed Size | 80 × 40 × 30 cm |
| Weight (incl. bag) | ~18.4 kg (40.5 lbs) |
| Ramps | 2 × 8 cm boarding ramps |
| Handles | 6 (compatible with all Yachtbeach platforms and Luxury Pools) |
| D-Rings | 4 top + 2 bottom (numerous tie-down and connection options) |

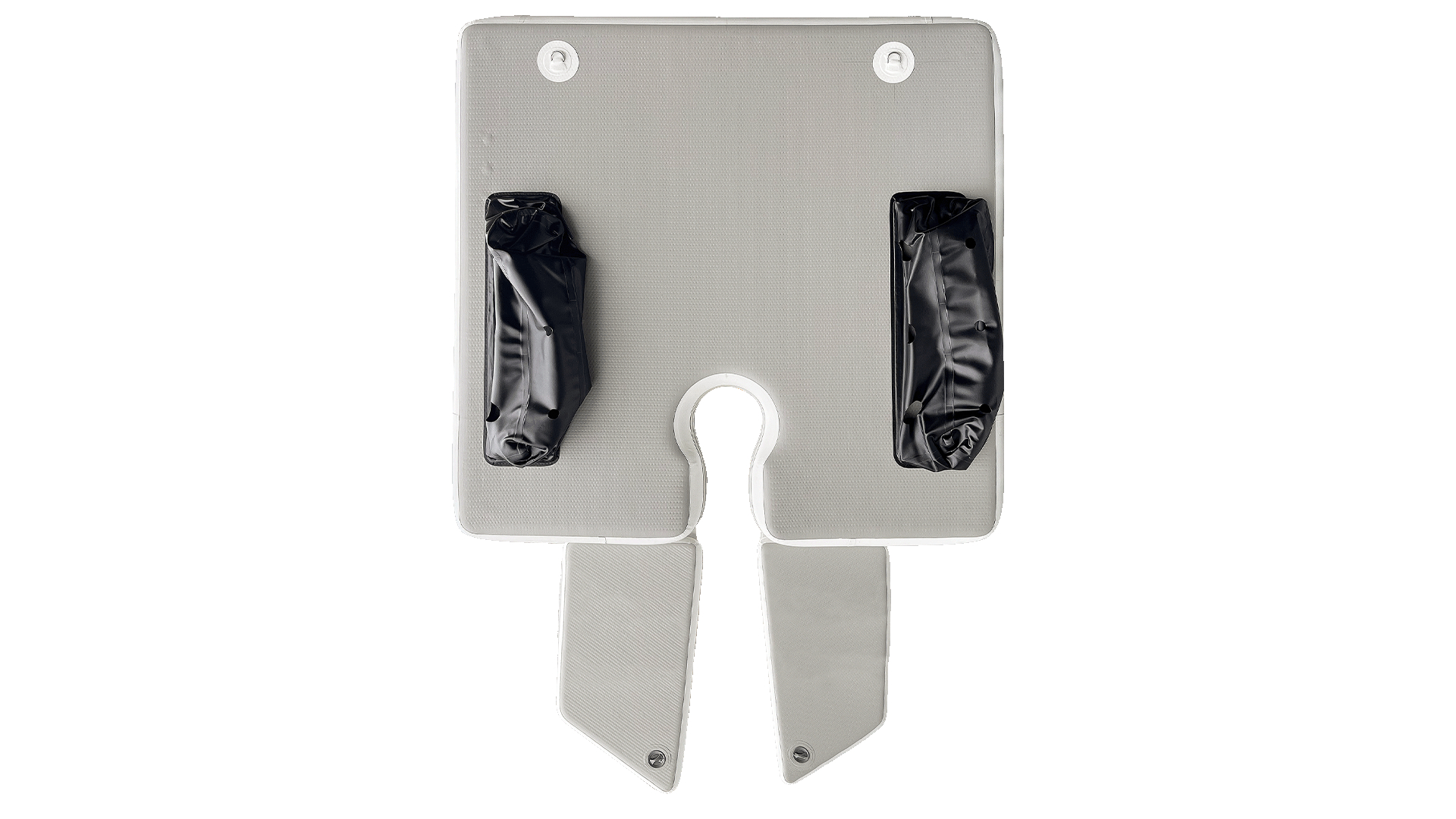

| Ballast Bags | 4 (wind & wave stability) |
| Inflation Valves | 4 high-pressure · 1 high-quality pressure-relief valve |
| Construction | Drop-stitch with EVA anti-slip surface |
| Hardware | No metal — marine-grade plastic / fabric construction |
| Packed Contents | Platform, carrying bag, repair kit (no glue) |
| Use Case | e-foil / jet-board docking, swim platform, modular floating deck |
Foil Dock vs. HEX Platforms
Yachtbeach offers multiple platform shapes — the Foil Dock is the docking specialist:
| Model | Shape | Ramps | Best for |
|---|---|---|---|
| Foil Dock Single 2.05 (this product) | 2.05 × 2.05 m square | 2 × 8 cm boarding ramps | e-foil / jet-board docking, swim platform |
| HEX Platform Sport Zone 2.50 | Hexagonal 2.50 m | – | Sport / activity zone |
| HEX Platform Relax Zone 2.50 | Hexagonal 2.50 m | – | Lounge / sunbathing |
| HEX Platform Party Zone 2.50 | Hexagonal 2.50 m | – | Group party / standing |
Use the Spinera Velcro Connector Pro to link modules.
Who is the Inflatable Foil Dock for?
The Foil Dock is built for owners of e-foils, jet boards and other watercraft who want easy boarding without a fixed dock:
- e-foil and jet-board riders who need a no-effort climb-out platform between sessions
- Yacht and superyacht owners who want a quick-deploy swim platform off the stern
- Modular-floating-deck builders who connect Foil Dock to HEX platforms and Luxury Pools for a custom layout
- Families with kids who want a safe, ramp-equipped boarding platform off the boat
- Charter operators who deploy the Foil Dock for guests using the yacht’s water toys
Larger groups or party / lounge use cases should look at the HEX Zone platforms; a deeper pool experience is available with the Yachtbeach Luxury Pool 4.1.
FAQ — Boarding, Connections & Care
What is the Foil Dock for?
It’s an inflatable docking platform with two ramps — the easiest way to climb back on board an e-foil, jet board or SUP after a session.
How big is it?
2.05 × 2.05 m (6.7′ × 6.7′). Packs down to 80 × 40 × 30 cm at 18.4 kg.
Can I connect the Foil Dock to other Yachtbeach modules?
Yes — 6 handles and 6 D-rings use the Yachtbeach connection system, which also fits the HEX platforms and Luxury Pools.
Why are there no metal parts?
No metal means no rust over time and no cut risk for swimmers reaching for the handles — a deliberate safety design choice.
What are the ballast bags for?
Four ballast bags keep the platform anchored against wind and current. Fill the bags with water on deployment; empty for storage.
How is the platform inflated?
4 high-pressure valves accept a standard SUP / Yachtbeach pump. The pressure-relief valve prevents overinflation in hot conditions.
Is the EVA surface comfortable on bare feet?
Yes — the anti-slip EVA stays cool enough for bare feet and the texture prevents slipping when wet.
Can I use the Foil Dock in salt water?
Yes — the materials are salt-water and UV rated. Rinse with fresh water after each salt-water session and let everything dry before storage.
How long does setup take?
A few minutes per inflation. Filling the ballast bags adds another few minutes. The whole platform is ready within ~10 minutes.
Does the platform include a pump?
Not included. Use a compatible high-pressure SUP / yacht pump (e.g. the Spinera Resort Electric Pump 230V Platinum).
What’s in the box?
The Foil Dock, a carrying bag and a repair kit (glue sold separately).
How do I store the Foil Dock between sessions?
Deflate, empty the ballast bags, pack everything into the carrying bag, store in a dry yacht locker or garage. Rinse with fresh water after salt-water exposure.
